Opera 2015 - Episode 028

Event number: 6019261
Date: 29-08-2015 time 18:47:03 (UTC)
Zone: Slovenia-Italy boundary  (SLOVENIA)
Magnitude: ML 4.2
Coordinates (lat, lon) 46.31, 13.58
Deep: 7 km.

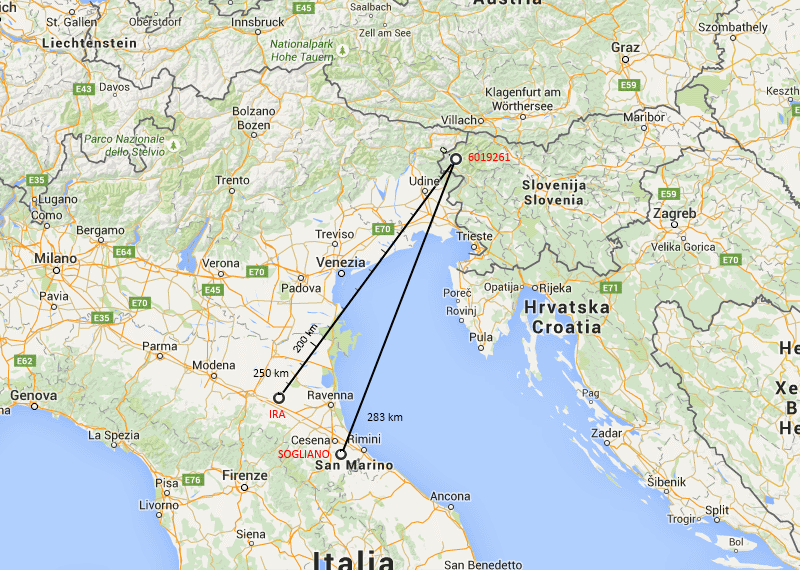

Map taken from Google Map

Seismic event details are reported by INGV:  http://cnt.rm.ingv.it/event/6019261

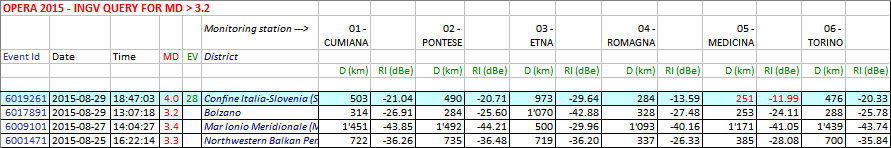

Radioseismic index (RI) and distances :



Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

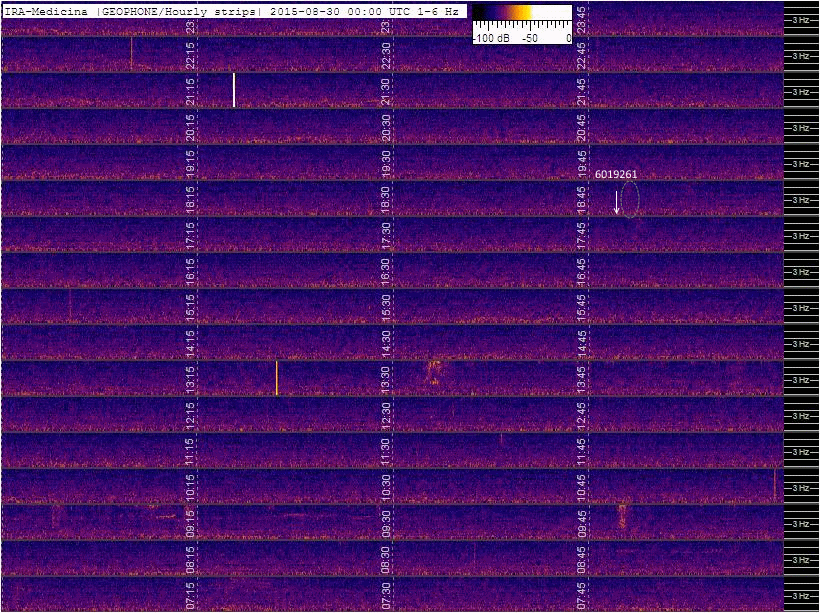

Geophone trace, hourly multistrip. Event 6019261 marked with white arrow. Very weak seismic wave follows the event.


Source files:

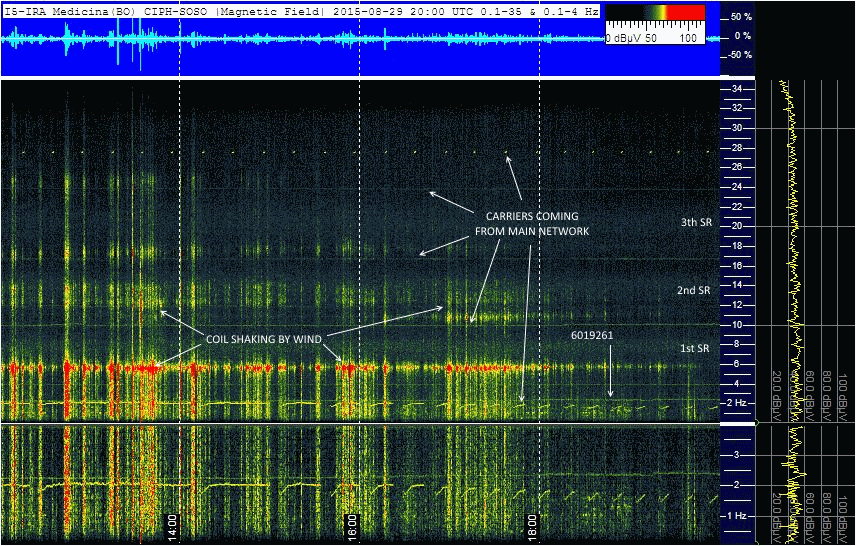

Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

ULFO induction coil,  6019261 event marked with white arrow. Schumann Resonances marked on right part. Microphonic effect caused by coil shake by wind, and many carriers coming from main network. No RF signals correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

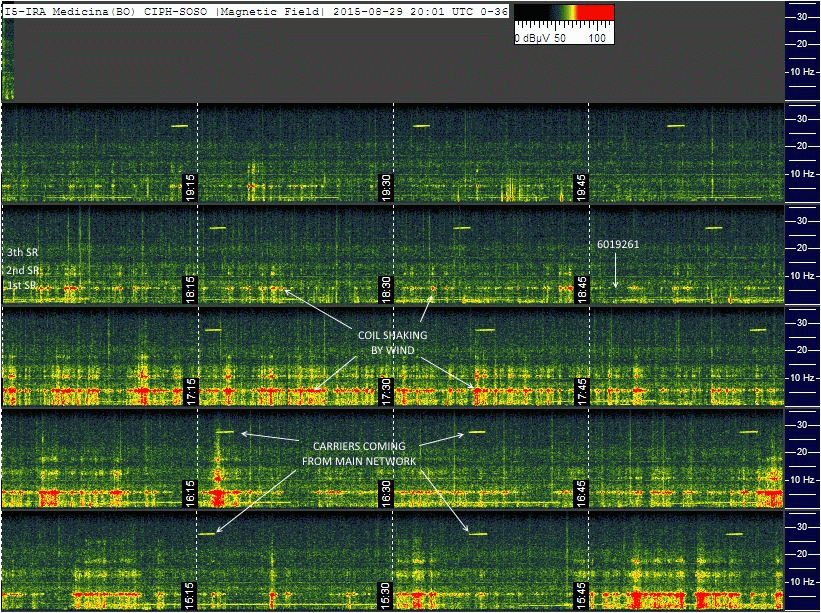

ULFO induction coil,  hourly strips spectrogram, 6019261 event marked with white arrow. Schumann Resonances on background, marked on left part. Microphonic effect caused by coil shake by wind, carriers coming from main network. No RF signals correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

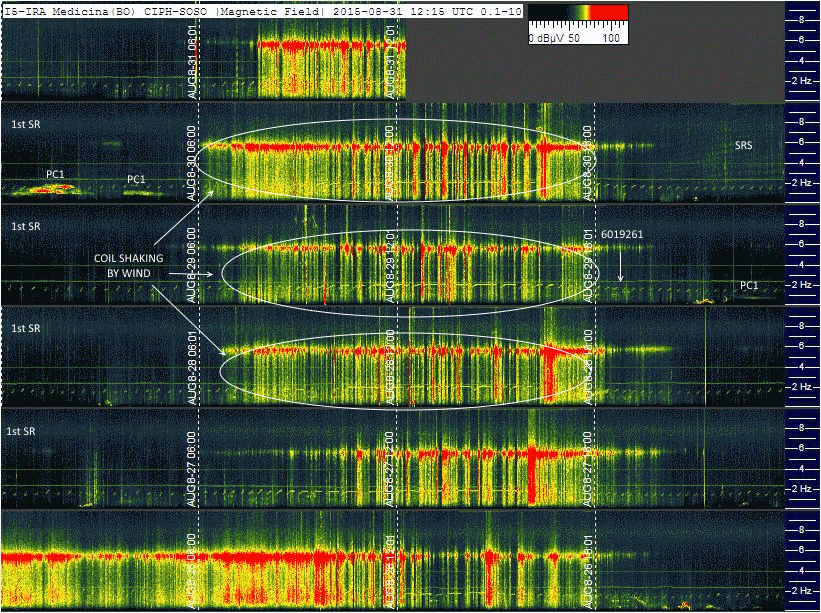

ULFO induction coil,  daily strips spectrogram, 6019261 event marked with white arrow. 1st Schumann resonance marked on left part. Microphonic effect caused by coil shake by wind, geomagnetic pulsations (PC1) and spectral resonances structure (SRS). No RF signals correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

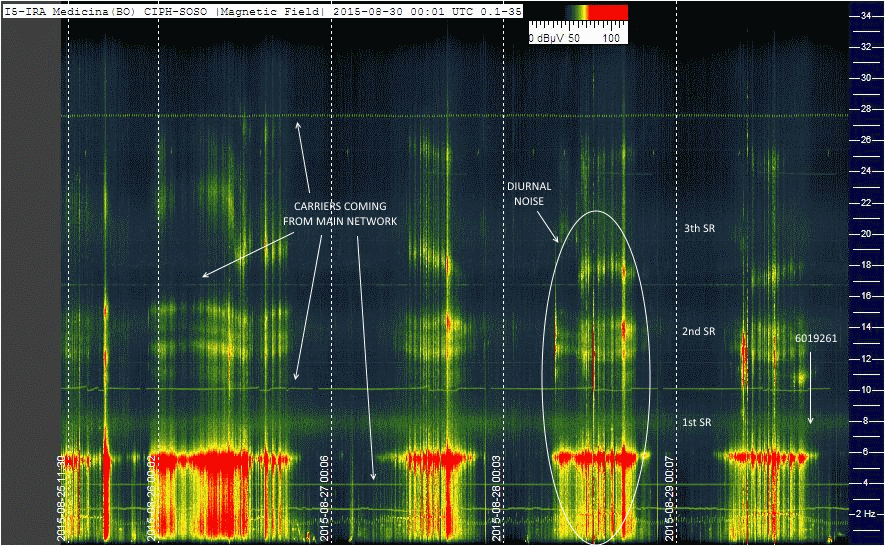

ULFO induction coil, five days view, 6019261 event marked with white arrow.  Schumann resonances marked on right part. Microphonic effect caused by coil shaken by wind every day during daylight and carriers coming from main network. No RF signals correlated with earthquake event.

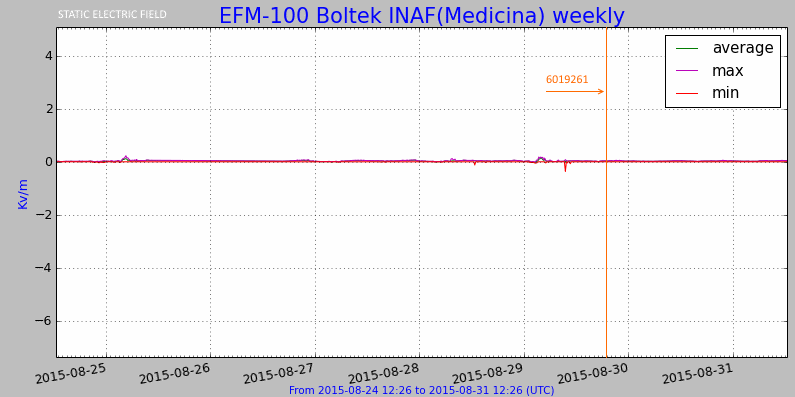

Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

Boltek sensor, static electric field,  6019261 event time marked with orange arrow. No anomalies first or after earthquake event.


Monitoring St. 04 - ROMAGNA OBSERVATORY From Sogliano al Rubicone (FC), N Italy.

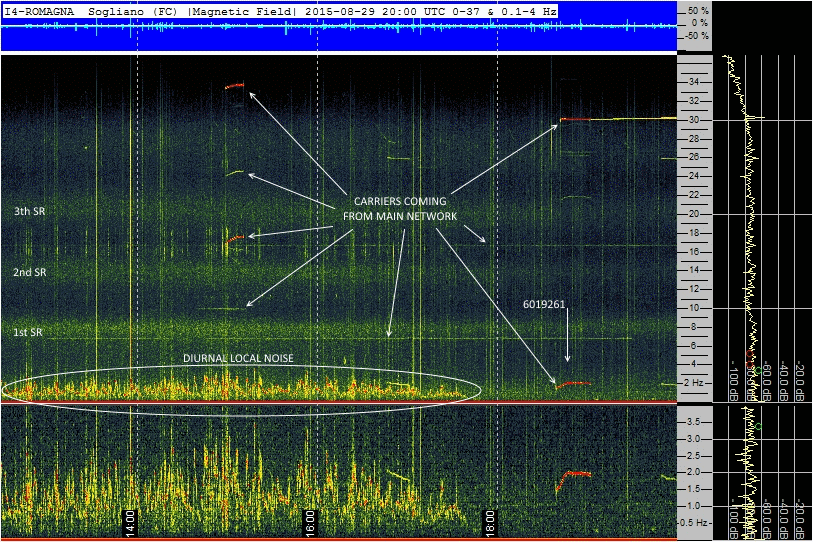

ICS101 induction coil,  6019261 event marked with white arrow. Schumann Resonances marked on left part. Diurnal local noise of unknown origin and many carriers coming from main network. No RF signals correlated with earthquake event.


Monitoring St. 04 - ROMAGNA OBSERVATORY From Sogliano al Rubicone (FC), N Italy.

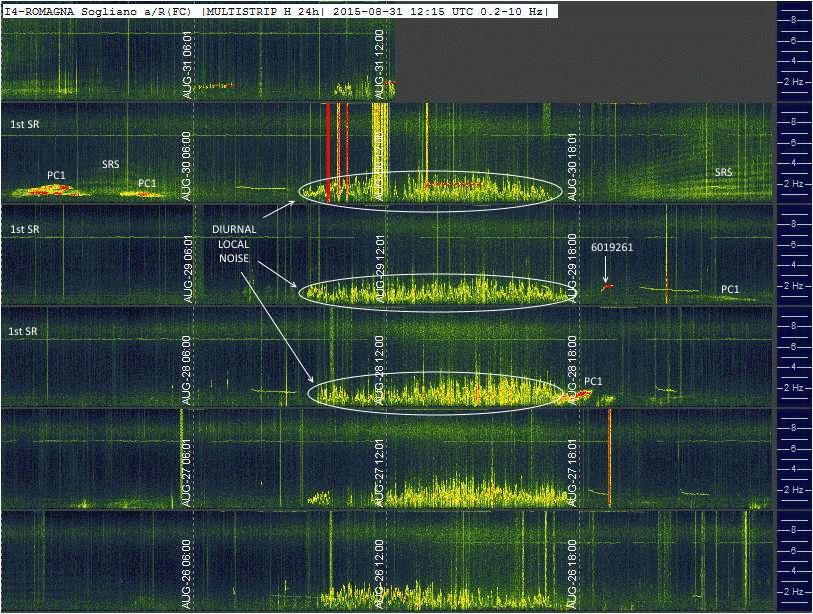

ICS101 induction coil,  daily strips spectrogram, 6019261 event marked with white arrow. 1st Schumann resonance marked on left part. Diurnal local noise of unknown origin, geomagnetic pulsations (PC1) and spectral resonances structure (SRS). No RF signals correlated with earthquake event.
