Opera 2015 - Episode 039

Event number: 6264601
Magnitude: Mwpd 7.6
Time: 24-11-2015  22:50:54 (UTC)
Area:  Peru Brazil border region [Land: Peru]
Coordinates (lat, lon): -9.96, -70.94
Deep: 624 km.


Map taken from Google Map

Seismic event details are reported by INGV: http://cnt.rm.ingv.it/event/6264601


Radioseismic index (RI) and distances:



www.blitzortung.org

Lightning situation over the monitoring station area: storm just over Etna volcano south Italy station.


http://www.swpc.noaa.gov/products/notifications-timeline

Quite activity in the days of earthquake:  6264601 event marked with vertical orange line.


http://www.irf.se/maggraphs/puls.php - Kiruna Geophysical Institute (Sweden )

Magnetic situation in the days of earthquake:  6264601 event marked with vertical orange line. Some magnetic pulsation detected in the first morning almost every day. No RF signals anomalies correlated with earthquake detected: first, during or after the event.


 http://www.sgo.fi/Data/Pulsation/latestPulsation.php - Sodankyla Geophysical Observatory (Finland)


Magnetic situation in the days of earthquake:  6264601 event marked with vertical red line. Same magnetic pulsation detected by Kiruna. No RF signals anomalies correlated with earthquake: detected first, during or after the event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Geophone on top and Marconi antenna on the bottom, 6264601 event marked with white arrow. Schumann Resonances on left part, ZEVS Russian submarines communication system carrier on 82 Hz, a sensitivity changing on 18:10 due to maintenance working on monitoring station (a BNC connector was fill with water) . No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna,  6264601 event marked with white arrow. Many statics coming from south Italy storm activity, 1000 km on south,  ALPHA Russian radionavigation system carriers staring from 11800 kHz. No RF signals anomalies correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna, daily strips,  6264601 event marked with white arrow on second strip, on right. Schumann Resonances marked on left part, daiylight activity below 30 Hz caused by wind, birds and my animals walking around antenna base. A weak breeze before the event causes microphonic effec on aerial antenna. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna and geophone plottings,  6264601 event marked with white arrow. Same trand of the others days: no RF signals anomalies correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

ICS101 iduction coil,  6264601 event marked with white arrow. Trains passing before the event (5 km away), Schumann Resonances marked on left part. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

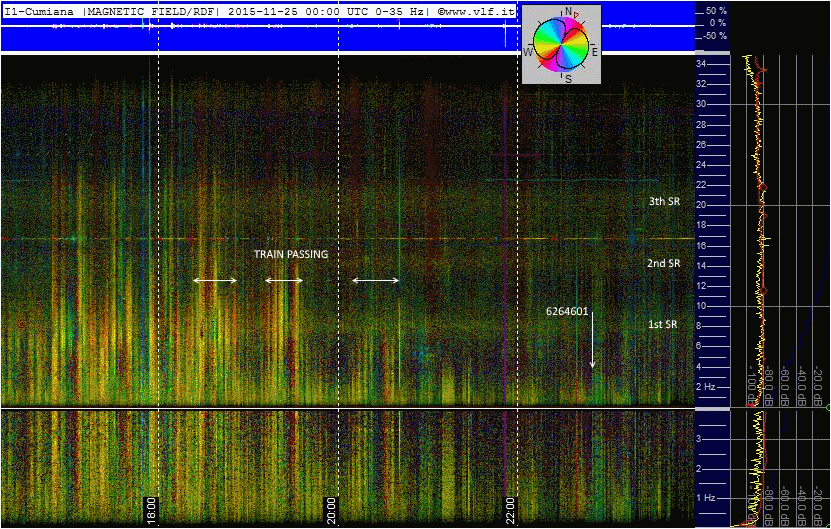

ICS101 induction coil, hourly strips,  6264601 event marked with white arrow. Schumann Resonances on background, trains passing. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

ICS101 induction coil,  6264601 event marked with white arrow on right. First Schumann Resonance marked  on left part. Ordinary activity during the daylight caused by trains passing. No RF signals anomalies correlated with earthquake event.


Monitoring St. 02 - CSP VLF MONITORING STATION From Pontese dew (TO), NW Italy

ADA floating receiver on top, aerial loop on bottom,  6264601 event marked with white arrow. Weak Schumann Resonances marked on left part. Wind shakes both sensors causing microphonic effect. No RF signals correlated with earthquake event.


Monitoring St. 02 - CSP VLF MONITORING STATION From Pontese dew (TO), NW Italy

ADA floating receiver on top, aerial loop on bottom,  6264601 event marked with vertical black arrow. Many multifrequency tweaks, Alpha Russian radionavigation system carriers over 11800 Hz. No RF signals anomalies correlated with earthquake event.


Monitoring St. 02 - CSP VLF MONITORING STATION From Pontese dew (TO), NW Italy

ADA floating receiver (blue), aerial loop (green), daily strips.  6264601 event marked with white arrow. Nocturnal tweaks activity, some breaking during the day caused by fiber optic link fault. No RF signals correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

ULFO induction coil,  6264601 event marked with white arrow. Schumann Resonances marked on left part, many interharmonics carriers coming from main network. No RF signals correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

ULFO induction coil,  hourly strips. 6264601 event marked with white arrow. Schumann Resonances on left part. No RF signals anomalies correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

ULFO induction coil, daily strips. 6264601 event marked with white arrow. Firs Schumann Resonances marked on right part. Wind shakes the system causing microphonic effect, some SRS. No RF signals correlated with earthquake event.


Monitoring St. 04 - ROMAGNA OBSERVATORY From Sogliano al Rubicone (FC), N Italy.

ICS101 induction coil,  6264601 event marked with white arrow. Schumann Resonances marked on left part, strong SRS activity, triggered probably by South Italy storm activity (see the Blitzortung lightning map before). No RF signals correlated with earthquake event.


Monitoring St. 04 - ROMAGNA OBSERVATORY From Sogliano al Rubicone (FC), N Italy.

ICS101 induction coil, daily strips.  6264601 event marked with vertical  white arrow on top. First Schumann Resonances on left part, strong SRS activity in the night between Nov. 24 and Nov. 25. No RF signals correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Geophone, hourly strips,  6264601 event marked with white arrow. Pressure wave and surface wave follows. Paroxysme activity some hours before the event, caused by Etna Volcano Eruption. No signals anomalies detected before the earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil,  6264601 event marked with white arrow. Schumann Resonances marked on left part, strong storm activity overcome the backround natural noise. No RF signals correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil, hourly strips,  6264601 event marked with white arrow on top (second strip). Schumann Resonances on background, lightning stroke overcome everything . No RF signals correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil, daily strips,  6264601 event marked with white arrow. First Schumann Resonances on left part.Wind shaking effect on bottom, local storm on top during the event. No RF signals correlated with earthquake event.


Source files:

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna and geophone, source file analyzed with Sonic Visualizer, one hours detail around the earthquake, 6264601 event marked with vertical red line. Schumann Resonances on left part. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

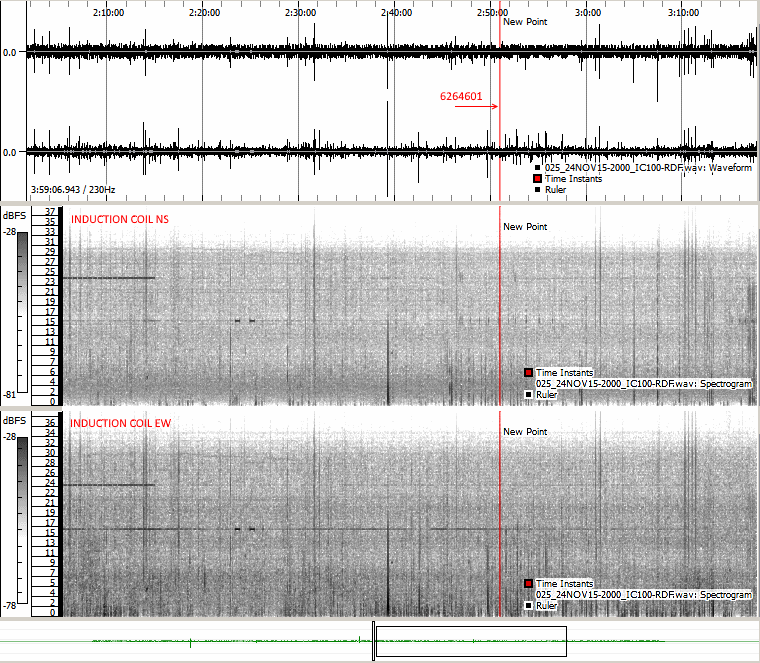

Two ICS101 orthogonal induction coils, source file analyzed with Sonic Visualizer, one hours detail around the earthquake, 6264601 event marked with vertical red line. No RF signals correlated with earthquake event.


Monitoring St. 02 - CSP VLF MONITORING STATION From Pontese dew (TO), NW Italy

ADA floating receiver (electric field) and aerial loop (magnetic), source file analyzed with Sonic Visualizer, one hours detail around the earthquake, 6264601 event marked with vertical red line. No RF signals correlated with earthquake event.


Monitoring St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

ULFO induction coil and geophone, source file analyzed with Sonic Visualizer, one hours detail around the earthquake, 6264601 event marked with vertical red line. Schumann Resonances on background. No RF signals correlated with earthquake event.


Monitoring St. 04 - ROMAGNA OBSERVATORY From Sogliano al Rubicone (FC), N Italy.

ICS101 induction coil, source file analyzed with Sonic Visualizer, one hours detail around the earthquake, 6264601 event marked with vertical red line. First Schumann Resonance marked on left part. No RF signals correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Geophone and induction coil, source file analyzed with Sonic Visualizer, one hours detail around the earthquake, 6264601 event marked with vertical red line. Schumann Resonances on left part. No RF signals correlated with earthquake event.
